Portable Mini Charger

Lightweight and compact, easy to carry;
Integrated motherboard, efficient and practical;
Complies with various mainstream global standards: Chinese, European, and American standards.

Product overview

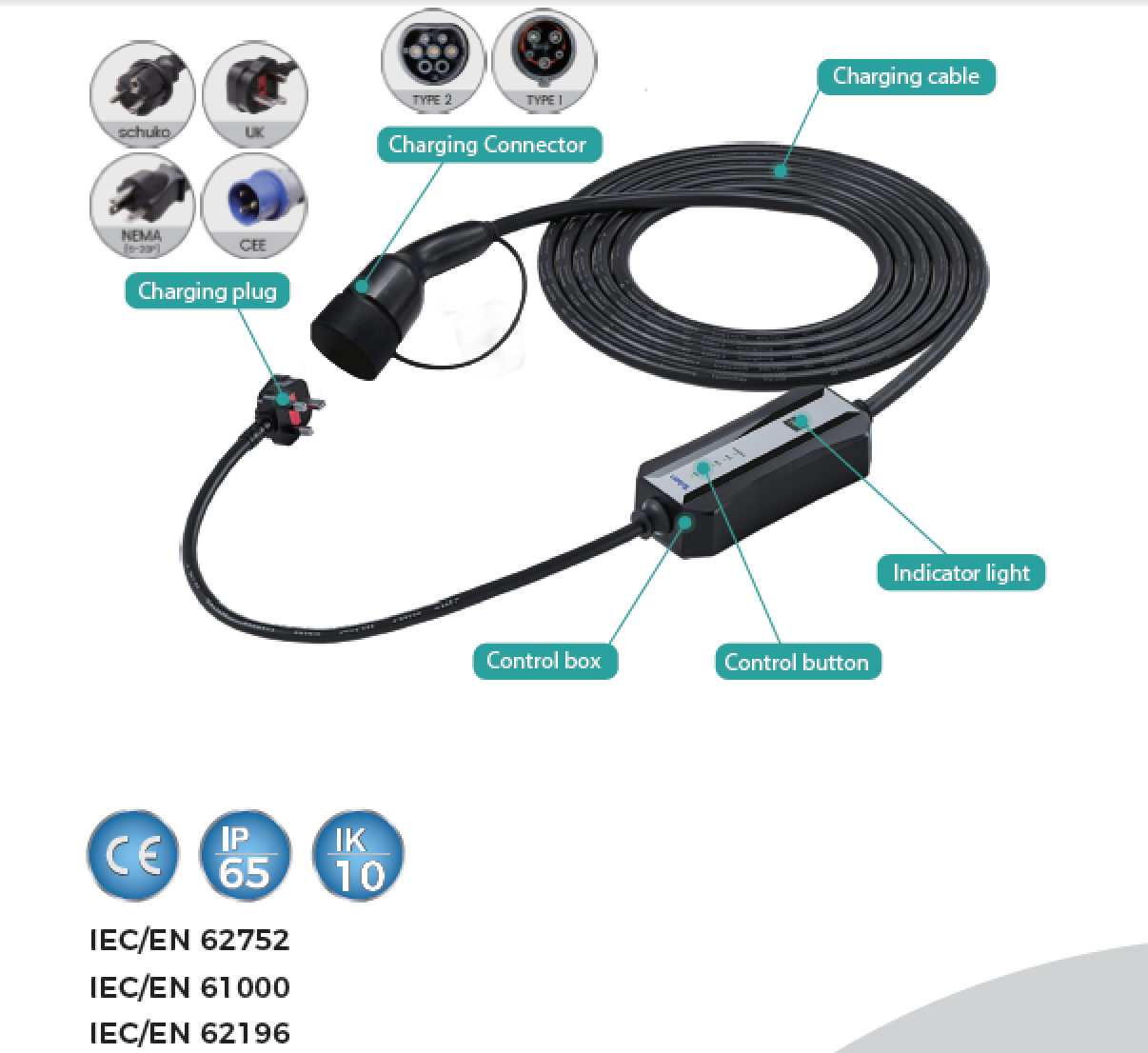

　　Mini but Powerful

Product features
　　Solid design wallbox
　　　Meet IP65 & IK10 standard by lab test
　　Color Indicator light
　　　Showing real time charging status
　　Control botton
　　　Max output current adjustment
　　Industry leading Water protection
　　　Resistance of 15 minutes direct spray from a high pressure water jet in lab test
　　TPU cable
　　　4.5 meter cable with excellent durability and top cold resistance at -40℃
　　TUV approved connector
　　　Excellent water protection and easy hold ；Silver plated terminals to minimize wear and tear on EV charging socket

　　Designed for your most convenient
　　　· IK10 Solid design withstand a 2.5T car
　　　· Mini size with no more than 2kg
　　　· Max 16A 1P stable and safe charging
　　　· Flexible charging/ power connector options
　　　· Color indicator light displays charging status in real time and dynamically
　　　· build in metering chip measures power consumption accurately
　　　· Max 5 levels current adjustment
　　　· -30℃-60℃ stable working
　　　· Self-diagnosis of faults, automatic repair
　　　· Compatible with all cars in type 2/1 connection
　　　· Protecting the life of car battery with the most stable charging process
　　Highest safety
　　　· PCV 0 housing with 2.0~3.0mm thick exudes robustness and protects inside components from external influences.
　　　· The housing is made from materials specially developed for top heat dissipation and with flame retardant coating.
　　　· Completely meets all requirements of the TUV applicable standards.
　　　· AC + DC faults detection
　　　· Real-time monitoring for heat and all instabilities during charging process

Parameter

Product size and packaging
　　Product size: 180*81*45mm
　　Product net weight: <1.9kg
　　Product gross weight: <2.2kg

　　Each one is with a certificate of conformity card. Five-layer corrugated packaging is used to fit the charger measured 　　410mm(L)*350mm(W)*80mm(H) for 1pc.
　　Outer package 1PC/CTN（425mm*365mm*95mm）or 7PCS/CTN(600mm*435mm*410mm).

Product installation
Pls kindly check the manual before using.
The operation steps are as follows:
Step 1: Connect with the power, the control box starts to be energized, the blue light is always on.Press the “Ampere button” to set charging current.
Step 2: Connect the vehicle and insert the plug into the vehicle socket. The control panel will automatically detect the connection status of the vehicle. After the connection is successful, the connection indicator (green) will be turned on and kept constant.
Step 3: Start charging and establish communication with the vehicle. Vehicles confirm the control box on the cable by detecting the duty ratio of PWM signal Maximum power current, charge indicator (green) blinking.
Step 4: Monitoring the charging process. During the charging process, the current, leakage current and temperature of the cable control box during charging process are monitored. If a fault occurs, the cable control box cuts off the power supply, stops charging, the indicator shows different faults according to flash freguency.
Step 5: Charging is over. The control box on the cable cuts off the power supply and stops charging. Disconnect the power plug from the outlet(socket). Disconnect the plug from the vehicle inlet.

Fault handling
If any abnormal, the LED blinks as below.

This cable has precise internal structure. Any questions, please contact our Customer Service Manager at the first time. Please do not take it apart without any professional technical support.
If any physical problem caused by Teison, we provide one year warranty to replace a new one.
